SMD Transducer
Magnetic Transducer: HS5025A42
- Mech Spec: L5.2 × W5.2 × H2.5
- Characteristics: 4.0KHz, 75dBA, 12 ± 3Ω
- Rated Voltage: 3Vo-p, SMD magnetic transducer
| Part Number | HS5025A42 |
| Oscillation Frequency | 4.0KHz |
| Operating Voltage | 2.0 ~ 4.0Vo-p |
| Rated Voltage | 3Vo-p |
| Current Consumption | Max 100mA |
| Sound Pressure Level | Min 75dBA / 10cm |
| Coil Resistance (Ω) | 12 ± 3 |

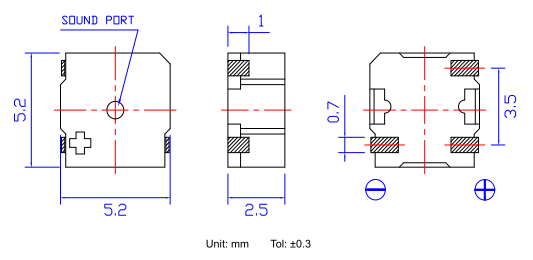

| Dimension (mm) | L5.2 × W5.2 × H2.5 |
