SMD Transducer
Magnetic Buzzer: HS5018A39

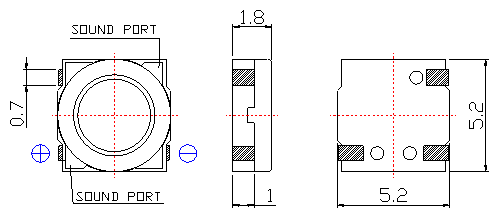

- Mech Spec: L 5.2 × W 5.2 × H 1.8
- Characteristics: 4.0KHz, 72dBA, 12 ± 3Ω
- Rated Voltage: 3Vo-p, SMD magnetic transducer
| Part Number | HS5018A39 |
| Resonant Frequency | 4.0KHz |
| Operating Voltage | 2.0 ~ 4.0Vo-p |
| Rated Voltage | 3Vo-p |
| Current Consumption | Max 100mA |
| Sound Pressure Level | Min 72dBA / 10cm |
| Coil Resistance (Ω) | 12 ± 3 |
| Dimension (mm) | L5.2 × W5.2 × H1.8 |
